Microstrip Patch Antenna Design for WLAN (5.4 GHz)
Published:
Overview
As part of the Antennensysteme course in my Master’s program in Electrical Systems at HTWG Konstanz, I designed and simulated a microstrip patch antenna for the 5.4 GHz WLAN band using Keysight EMPro.
→ Download Report (PDF)
→ Download EMPro Project (.zep) (without simulation results)
The project focused on antenna parameters such as return loss, bandwidth, gain, and directivity, and compared the simulation results with literature values. Simulations were performed using both FEM and FDTD methods in EMPro.

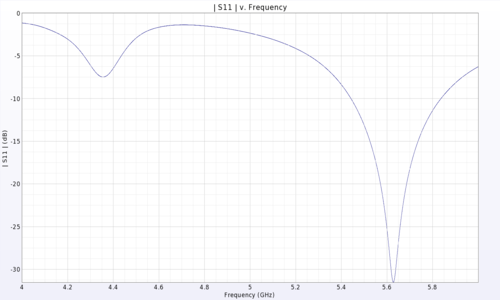

S-Parameter (Return Loss)

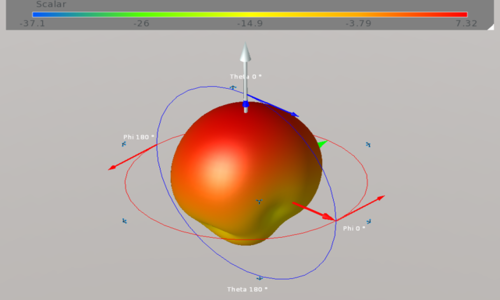

3D Directivity Pattern
Tech Stack
- Tools: Keysight EMPro
- Materials: FR4 substrate, copper patch/ground
- Methods: 3D simulation (FEM & FDTD), S-parameter analysis
Results
- Return loss: –31.5 dB at 5.63 GHz
- Bandwidth: 0.395 GHz
- Gain: 2.95 dBi
- Directivity: 7.32 dBi
- Efficiency: ~40.3%
